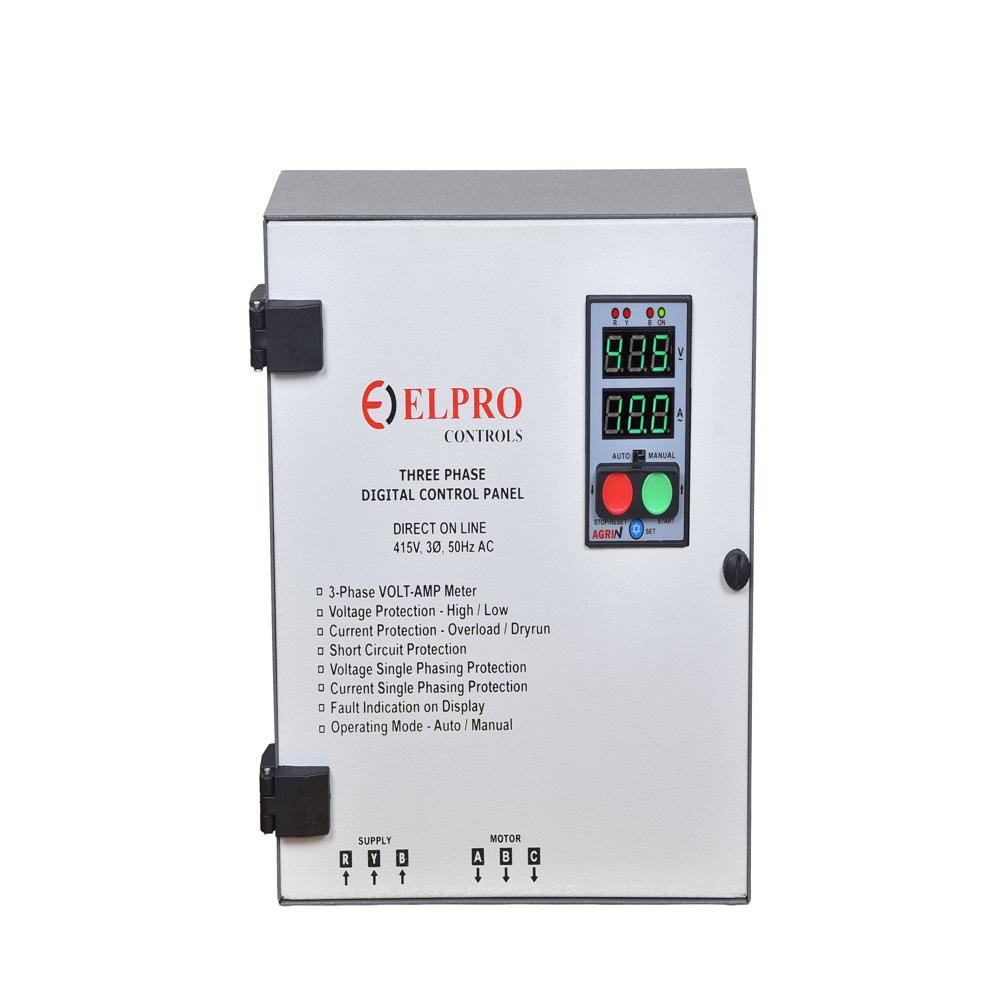

AGRIN-PHASER-PANEL : 3 Phase Digital Control Panel With Automatic Phase Sequence Corrector

Product Video

AGRIN-PHASER-PANEL : 3 Phase Digital Control Panel With Automatic Phase Sequence Corrector

6000.0 INR/Piece

Get a Price/Quote

Product Details:

Cabinet Material Powder Coated Sheet Metal
Cover Material Other
Base Material Other
Operating Voltage 415V AC Volt (V)
Cooling System Natural Air Cooled
Control System Microcontroller Based
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

AGRIN-PHASER-PANEL : 3 Phase Digital Control Panel With Automatic Phase Sequence Corrector Price And Quantity

Price 6000.0 INR/Piece
Minimum Order Quantity 5 Piece

Input Supply 3 Phase 4 Wire
Mounting Type Wall Mountable
Bus Bar Material Electrolytic Copper
Indication Lamps LED Indication for Phase, ON/OFF
Environmental Compliance RoHS Compliant
Auto/Manual Mode Selection Available
Humidity Range Up to 95% RH Non-Condensing
Operating Temperature Range -10C to +55C
Wiring ISI Marked Copper Wires

AGRIN-PHASER-PANEL : 3 Phase Digital Control Panel With Automatic Phase Sequence Corrector Product Specifications

Components Digital Voltmeter, Ammeter, Phase Failure Relay, Phase Sequence corrector, Auto Switch
Rated Operation Voltage 200 TO 510VAC
Frequency 50 Hertz (HZ)
Current Rating 25 Amp
Thickness 22 Gauge
Phase 3
Maximum Output Current 25A Ampere (amp)
Frequency (MHz) 50 Hz Hertz (HZ)
Way 3 Way
Material Sheet Metal Powder Coated
Surface Color Other
Panel Type Digital
Rated Current 25 A Ampere (amp)
Connectivity Type Panel Mounted Terminals
Protection Level Other
Usage & Applications Water pump, Submersible pump, Induction motor
Cover Material Other
Warranty 12 Months
Rated Voltage 415 VAC Volt (V)
Operating Voltage 415V AC Volt (V)
Cooling System Natural Air Cooled
Base Material Other
Product Type Electric Panel
Dimension (L*W*H) 400 x 300 x 150 mm Millimeter (mm)
Cabinet Material Powder Coated Sheet Metal
Operating Temperature 0 to 55 Celsius (oC)
Application Agricultural, Industrial and Commercial Automation
Surface Finish Powder Coated
Display Type Digital
Features Phase sequence Corrector & phase failure protection, automatic switching, overload protection, Short circuit protection, Dry run protection
Control System Microcontroller Based

Input Supply 3 Phase 4 Wire
Mounting Type Wall Mountable
Bus Bar Material Electrolytic Copper
Indication Lamps LED Indication for Phase, ON/OFF
Environmental Compliance RoHS Compliant
Auto/Manual Mode Selection Available
Humidity Range Up to 95% RH Non-Condensing
Operating Temperature Range -10C to +55C
Wiring ISI Marked Copper Wires

AGRIN-PHASER-PANEL : 3 Phase Digital Control Panel With Automatic Phase Sequence Corrector Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 500 Piece Per Month
Delivery Time 5 Days
Main Domestic Market All India

Product Description

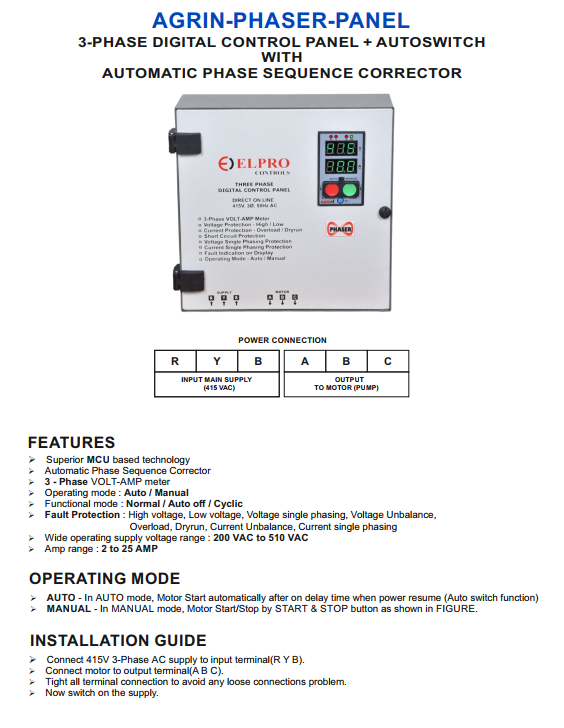

FEATURES

Superior MCU based technology
Automatic Phase Sequence Corrector (AGRIN-PHASER)
3 - Phase VOLT-AMP meter
Operating mode : Auto / Manual
Functional mode : Normal / Auto off / Cyclic
High Voltage Settable
Low Voltage Settable
Overload and Dryrun Trip Time Settable
Dryrun Reset Time Settable
Fault Protection : High voltage, Low voltage, Voltage single phasing, Phase Reversal (TELLAN), Voltage Unbalance, Overload, Dryrun, Current Unbalance, Current single phasing, Motor Short Circuit
Wide operating supply voltage range : 200 VAC to 510 VAC
Amp range : 2 to 25 AMP
Attractive powder coated sheet metal enclosure

APPLICATIONS

For Motor Protection in Hotels, Homes, Commercial Complexes & Industries

MODEL	DESCRIPTION
AGRIN-PANEL	3-Phase Digital Control Panel with Auto Switch, SUPPLY-415VAC, 2 to 25 AMP
AGRIN-PHASER-PANEL	AGRIN + Automatic Phase Sequence Corrector

Introducing the Agrin Phaser 3 Phase Digital Control Panel With Auto Switch - the epitome of elite industrial control. This opulent control solution promises an exclusive deal with top-drawer features: phase indication, overload protection, and automatic switching-ensuring reliable automation at the best price. Built with electrolysis copper bus bars and premium ISI-marked copper wiring for optimal conductivity, it boasts a sturdy mild steel body, RoHS compliance, and a refined, powder-coated finish. Experience advanced safety with IP54-rated enclosure, phase failure protection, and a microcontroller-based system. Elevate your operations-secure this premium panel today.

Versatile Use for Diverse Applications

The Agrin Phaser 3 Phase Digital Control Panel With Auto Switch is designed for rigorous industrial and commercial automation demands. Suitable for wall mounting, it excels in harsh environments with its wide operating temperature and humidity range. Its utility shines across factories, warehouses, and large commercial setups requiring precise control, making it an indispensable asset for both regular operation and high-demand automation. Whether for continuous process or emergency backup, this panel delivers unwavering performance.

Rapid Delivery, Market Value, and Reliable Transportation

Achieve premium market value with the Agrin Phaser control panel, available for swift dispatch across India's industrial sector. Sample units are available upon request to guarantee fit and functionality. With efficient freight management and reliable transportation networks, delivery is streamlined for timely installation. Serving the main domestic market, this product ensures your automation infrastructure benefits from elite reliability, minimizing downtime and maximizing productivity within your budget.

FAQ's of Agrin Phaser 3 Phase Digital Control Panel With Auto Switch:

Q: How can I use the Agrin Phaser 3 Phase Digital Control Panel in my facility?

A: This control panel is versatile and suited for both industrial and commercial automation applications, including machinery control, process automation, and equipment protection. Its wall-mountable design and multiple operation modes make it easy to install and operate in various settings.

Q: What protection and safety features does this control panel offer?

A: The Agrin Phaser panel is equipped with phase sequence and phase failure protection, overload protection, and automatic switching. It also features an IP54-rated enclosure for dust and water resistance, ensuring safe operation even in demanding environments.

Q: Where is the Agrin Phaser 3 Phase Digital Control Panel manufactured and supplied?

A: This high-quality product is manufactured and supplied in India, meeting IS standards and RoHS compliance. It is available throughout the main domestic market, with logistics designed for prompt delivery.

Q: What components are included in the panel's system?

A: The panel features a microcontroller-based system with a digital voltmeter, ammeter, phase failure relay, MCCB, and an auto switch. It uses ISI-marked copper wires and electrolytic copper bus bars for optimal conductivity and durability.

Q: When can I expect the delivery of the Agrin Phaser panel and is a sample available?

A: Delivery times are prompt, leveraging effective freight and transportation services to reach locations swiftly. Sample panels can be provided upon request to help clients assess suitability before large-scale procurement.

Q: What are the main benefits of using this digital control panel?

A: The panel provides enhanced automation, reliable phase protection, seamless operation between auto and manual modes, and ease of installation, making it an excellent investment for both safety and operational efficiency.
