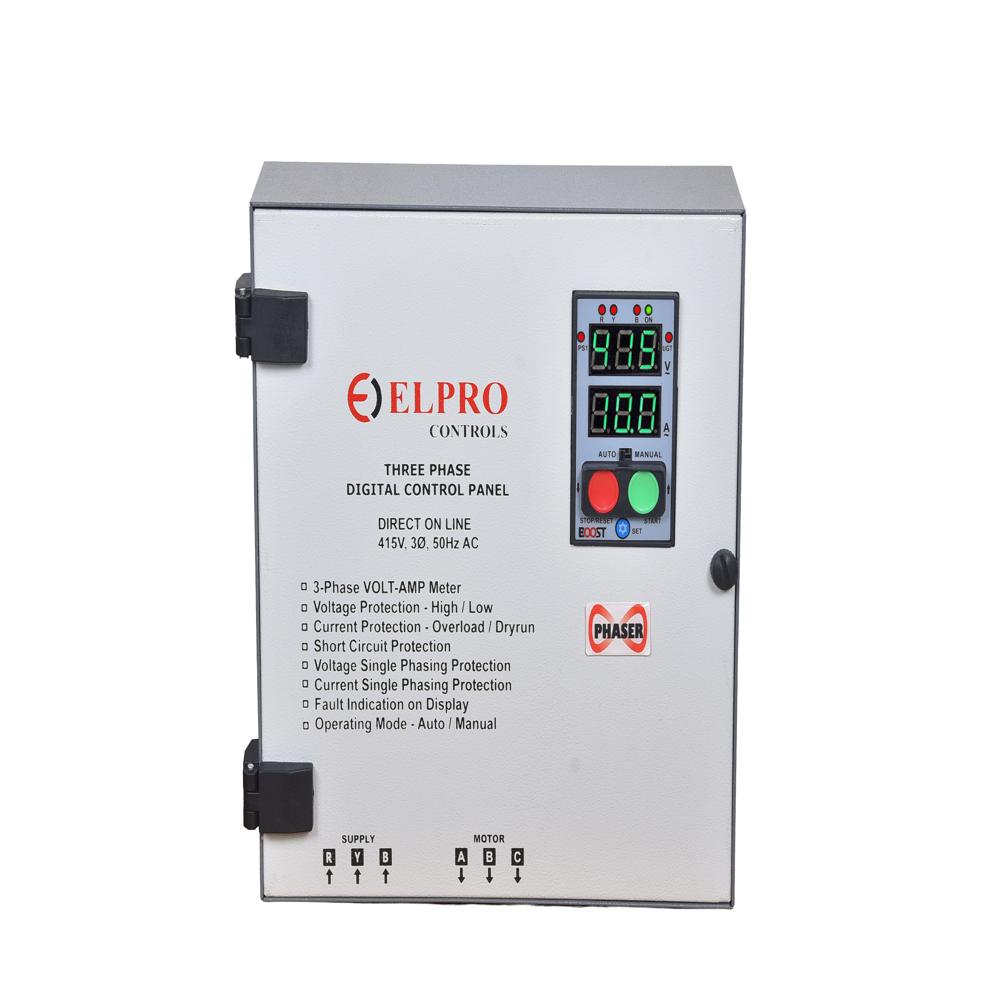

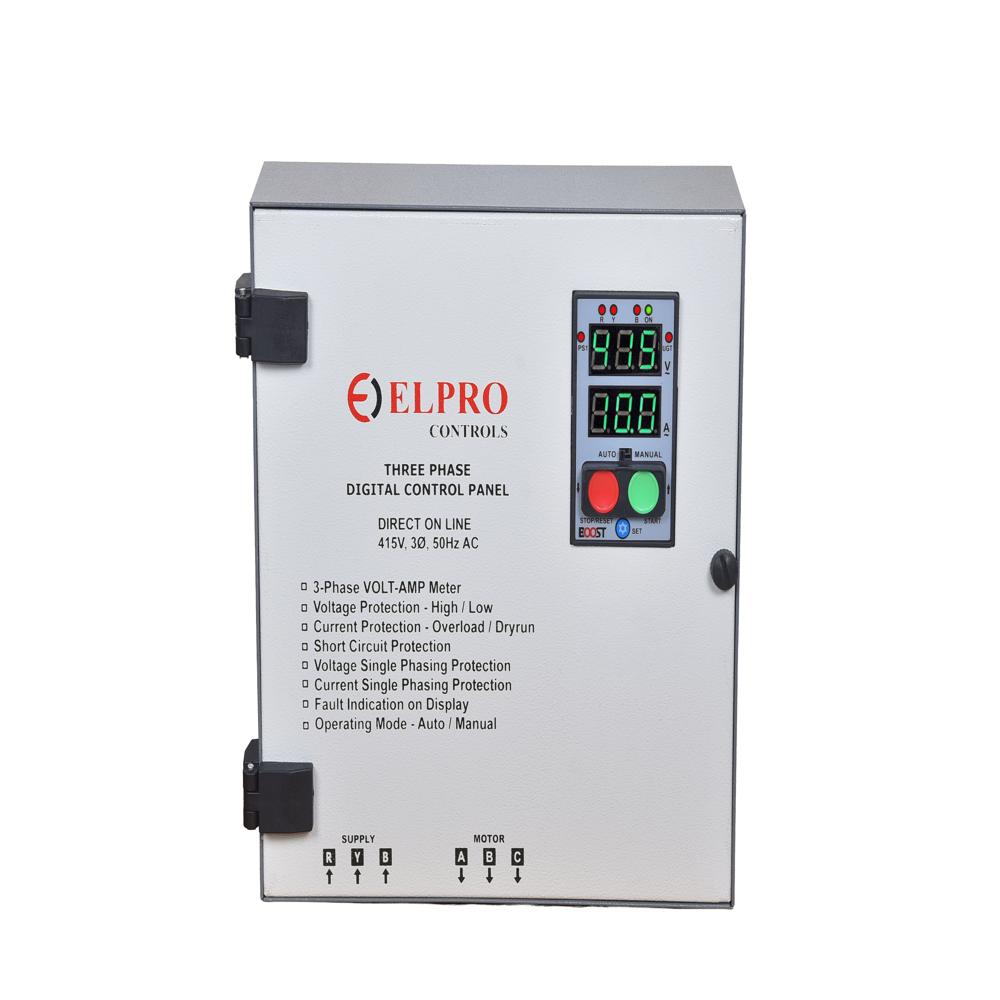

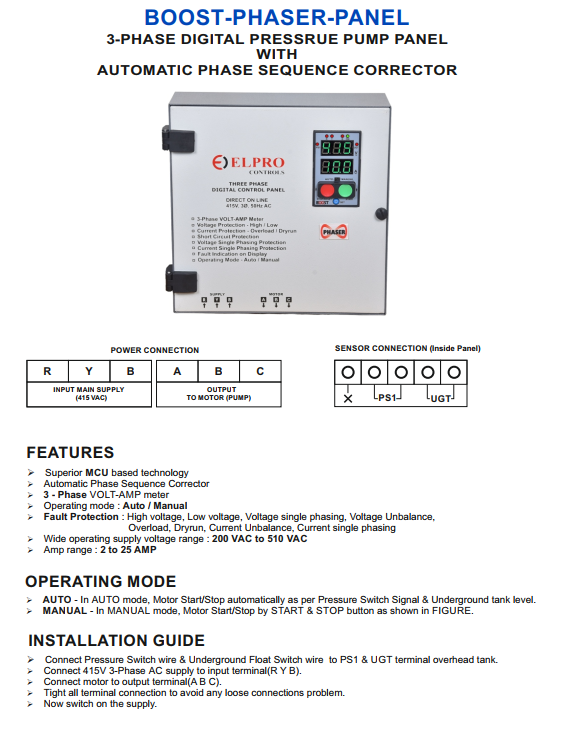

BOOST-PHASER-PANEL : 3 Phase Pressure Pump Panel With Automatic Phase Sequence Corrector
7200.0 INR/Piece
Product Details:
- Base Material Metal Base
- Control System Microcontroller Based Digital System
- Features Automatic Phase Sequence Corrector, Overload Protection,
- Thickness 22 Gauge
- Cover Material Metal
- Cabinet Material Powder coated Sheet Metal
- Click to View more
X
BOOST-PHASER-PANEL : 3 Phase Pressure Pump Panel With Automatic Phase Sequence Corrector Price And Quantity
- 7200.0 INR/Piece
- 5 Piece
- Wall Mounted / Surface Mount
- Up to 95% RH Non-Condensing
- Electrolytic Copper
- -10C to +55C
- Approx. 11 kg
- Boost Phaser
- 25 mm2
- Dust and Moisture Protected
- 230V AC (For Digital Meter)
- Miniature Circuit Breaker (MCB)
- Auto/Manual Selector Switch
- Phase On, Auto, Manual, Fault
- 3-Phase (R, Y, B)
BOOST-PHASER-PANEL : 3 Phase Pressure Pump Panel With Automatic Phase Sequence Corrector Product Specifications
- Pressure pump, Booster pump, Fire fighting pump
- 3
- Terminal Block
- Wall Mounted
- 25A Ampere (amp)
- 220-510V AC Volt (V)
- 3 Way
- Digital
- 0 to 55 Celsius (oC)
- Natural Air Cooling
- 500 x 400 x 200 mm Millimeter (mm)
- 220 to 510 VAC
- Other
- 12 Months
- 25A
- Relay, Contactor, Digital Ammeter/Voltmeter, Pressure Switch, Float
- Metal Base
- 50 Hertz (HZ)
- Automatic Phase Sequence Corrector, Overload Protection
- 415 VAC Volt (V)
- Powder Coated
- Microcontroller Based Digital System
- Switchgear
- 22 Gauge
- 50Hz Hertz (HZ)
- Metal
- Sheet Metal
- Powder coated Sheet Metal
- 25A Ampere (amp)
- Other
- Pressure pump, Booster pump, Fire fighting pump
- Wall Mounted / Surface Mount
- Up to 95% RH Non-Condensing
- Electrolytic Copper
- -10C to +55C
- Approx. 11 kg
- Boost Phaser
- 25 mm2
- Dust and Moisture Protected
- 230V AC (For Digital Meter)
- Miniature Circuit Breaker (MCB)
- Auto/Manual Selector Switch
- Phase On, Auto, Manual, Fault
- 3-Phase (R, Y, B)
BOOST-PHASER-PANEL : 3 Phase Pressure Pump Panel With Automatic Phase Sequence Corrector Trade Information
- Cash in Advance (CID)
- 500 Piece Per Month
- 5 Days
- All India
Product Description
FEATURES
- Superior MCU based technology
- Automatic Phase Sequence Corrector (BOOST-PHASER)
- 3 - Phase VOLT-AMP meter
- Operating mode : Auto / Manual
- High Voltage Settable
- Low Voltage Settable
- Overload and Dryrun Trip Time Settable
- Fault Protection : High voltage, Low voltage, Voltage single phasing, Phase Reversal (BOOST), Voltage Unbalance, Overload, Dryrun, Current Unbalance, Current single phasing, Motor Short Circuit
- Wide operating supply voltage range : 200 VAC to 510 VAC
- Amp range : 2 to 25 AMP
- Attractive powder coated sheet metal enclosure
APPLICATIONS
- For Pressure Pump Protection in Hotels, Homes, Commercial Complexes & Industries
|
MODEL |
DESCRIPTION |
|
BOOST-PANEL |
3-Phase Digital Pressure Pump Control Panel with Pressure Switch & Underground Tank Signal |
|
BOOST-PHASER-PANEL |
BOOST + Automatic Phase Sequence Corrector |
Select the Boost Phaser 3 Phase Digital Control Panel With Auto Switch and secure an unassailable advantage in industrial automation. This immaculate panel, crafted from CRCA steel and finished in powder-coated grey, offers heroic reliability with phase sequence and overload protection. Price cut opportunities make this scarce, high-spec panel even more attractive. Designed for operating voltages of 380-440V AC and current rating up to 63A, Boost Phaser delivers uncompromising safety, dust and moisture resistance (IP54), and advanced digital control - your trusted solution for demanding environments.
Optimized Usage and Applications
Boost Phaser 3 Phase Digital Control Panel With Auto Switch stands as the ideal choice for industrial automation, AC motors, and water pump operations. Its robust design and advanced microcontroller-based digital system ensure seamless control in demanding environments. Adaptable for use across a wide range of industries, this panel accommodates ambient conditions from -10C to +55C and up to 95% RH non-condensing humidity. From process plants to manufacturing, its select features deliver uncompromising performance and application versatility.
Supply Ability and Packaging Information
Boost Phaser control panels are produced in limited, select batches to maintain uncompromised quality, with supply ready to meet urgent requirements. Each panel is immaculately packaged for safe transportation, ensuring its dust and moisture-protected design arrives intact. Once your order is placed, products are swiftly dispatched and generally delivered within a short, reliable timeframe. Boost Phaser's dispatching process ensures that your industrial control solutions are always delivered as promised-secure, prompt, and ready for installation.
Optimized Usage and Applications
Boost Phaser 3 Phase Digital Control Panel With Auto Switch stands as the ideal choice for industrial automation, AC motors, and water pump operations. Its robust design and advanced microcontroller-based digital system ensure seamless control in demanding environments. Adaptable for use across a wide range of industries, this panel accommodates ambient conditions from -10C to +55C and up to 95% RH non-condensing humidity. From process plants to manufacturing, its select features deliver uncompromising performance and application versatility.
Supply Ability and Packaging Information
Boost Phaser control panels are produced in limited, select batches to maintain uncompromised quality, with supply ready to meet urgent requirements. Each panel is immaculately packaged for safe transportation, ensuring its dust and moisture-protected design arrives intact. Once your order is placed, products are swiftly dispatched and generally delivered within a short, reliable timeframe. Boost Phaser's dispatching process ensures that your industrial control solutions are always delivered as promised-secure, prompt, and ready for installation.
FAQ's of Boost Phaser 3 Phase Digital Control Panel With Auto Switch:
Q: How does the Auto/Manual selector switch enhance the usage of the Boost Phaser panel?
A: The Auto/Manual selector switch provides you with flexibility for both automated and manual control, allowing user intervention when required or seamless automated operation according to your system's needs.Q: What protection features are included in the Boost Phaser 3 Phase Digital Control Panel?
A: The panel provides phase sequence protection, overload protection, miniature circuit breakers (MCBs), and an IP54 enclosure to safeguard against dust, moisture, and electrical faults.Q: Where can the Boost Phaser digital control panel be installed?
A: Designed as a wall or surface-mounted unit, the Boost Phaser can be installed in various industrial environments, such as factories, automation systems, and water pump stations.Q: What is the process for ordering and dispatching the Boost Phaser panel?
A: After placing an order with a manufacturer or supplier in India, your Boost Phaser panel is packaged immaculately and dispatched promptly, ensuring timely and secure delivery.Q: What benefits does the digital LED display provide during operation?
A: The digital LED display offers clear and precise monitoring of current and voltage, enhancing operational efficiency and aiding in quick fault diagnosis for minimal downtime.Tell us about your requirement
